Roof Trims

Wall Trims

Hybrid-35 Trims

Trims that compliment the Hybrid-35 metal panel. Comes in 24ga, 26ga & 29ga and all provided colour options.

Hybrid-35 Trims | Metal Roofing & Siding Experts

LR-936 Trims

Trims that compliment the LR-936 metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

LR-936 Trims | Metal Roofing & Siding Experts

PBR-1236 Trims

Trims that compliment the PBR-1236 metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

PBR-1236 Trims | Metal Roofing & Siding Experts

PR-936 Trims

Trims that compliment the PR-936 metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

PR-936 Trims | Metal Roofing & Siding Experts

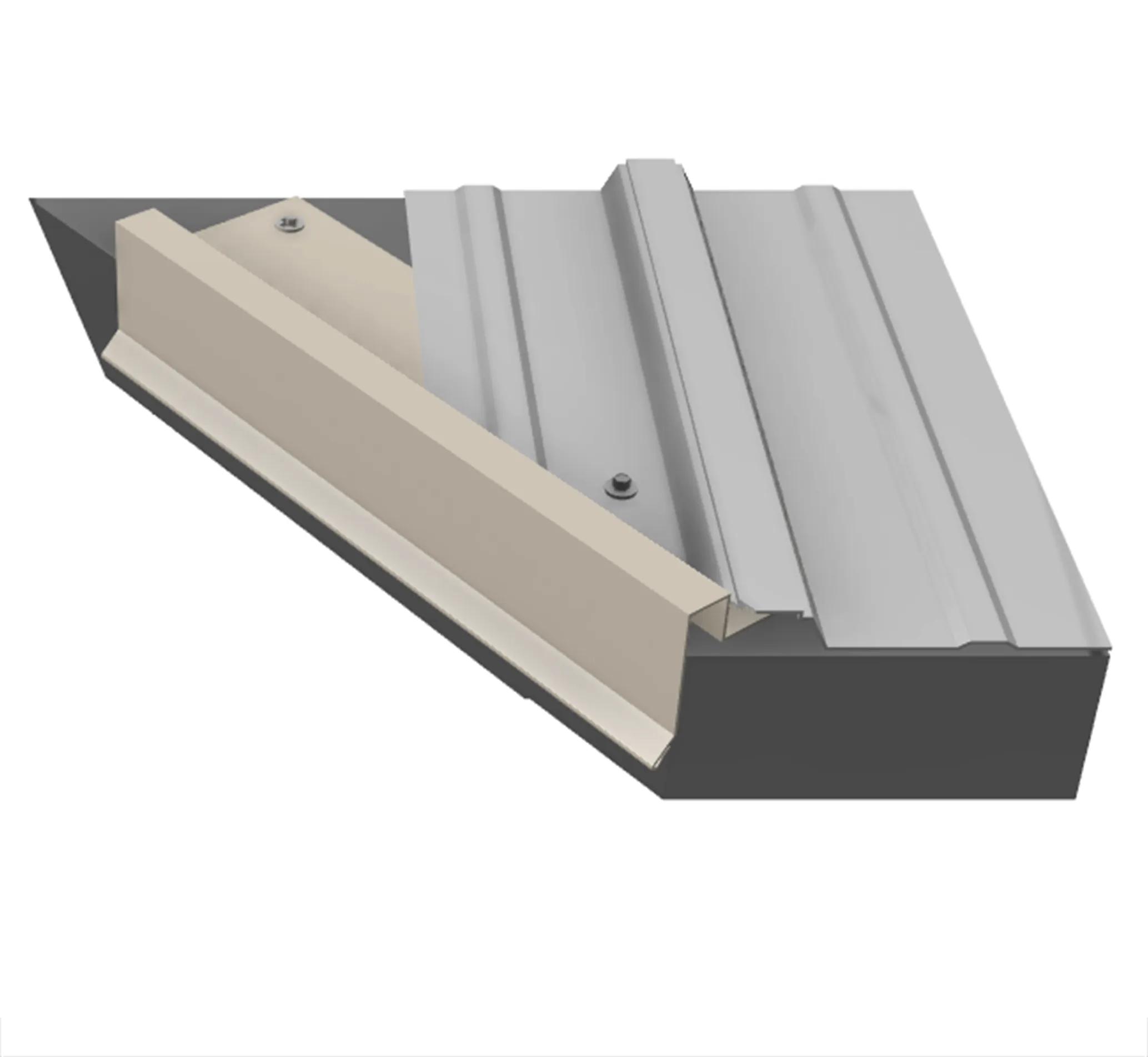

Gable flashing is used to trim the edge of the roofing panel at the gable end of the roof. It should match the eave flashing that extends along the drip edge of the roof.  If the panel is allowed to hang over the gable end, eave flashing can be used instead. Butyl tape between the trim and the panel eliminates leaks.

This Gable flashing allows for approximately 1.375″ of coverage.

Eave flashing gives a finished look along the drip eave of the house, as well as providing protection for the materials they cover. The eave flashing should completely cover the top edge of the fascia. Inside closures, which seal off the open ribs of the panels, are optional.

This Gable flashing allows for approximately 2.125″ of coverage.

Allows for approximately 4.625″ of roof coverage and 2″ of wall coverage.

This Gable flashing allows for approximately 5″ of coverage

Eave flashing can be bent to match roof pitch, which must be specified at time of ordering.

This Gable flashing allows for approximately 3″ of coverage.

Allows for approximately 5″ of coverage.

Pitch must be specified at time of ordering.

Peak cap is used on the top leading edge of “mono” roof systems to prevent the penetration of moisture and foreign objects.

Allows for approximately 4″ of coverage

Can be bent to match roof pitch, which must be specified at time of ordering.

Allows for approximately 6″ of coverage.

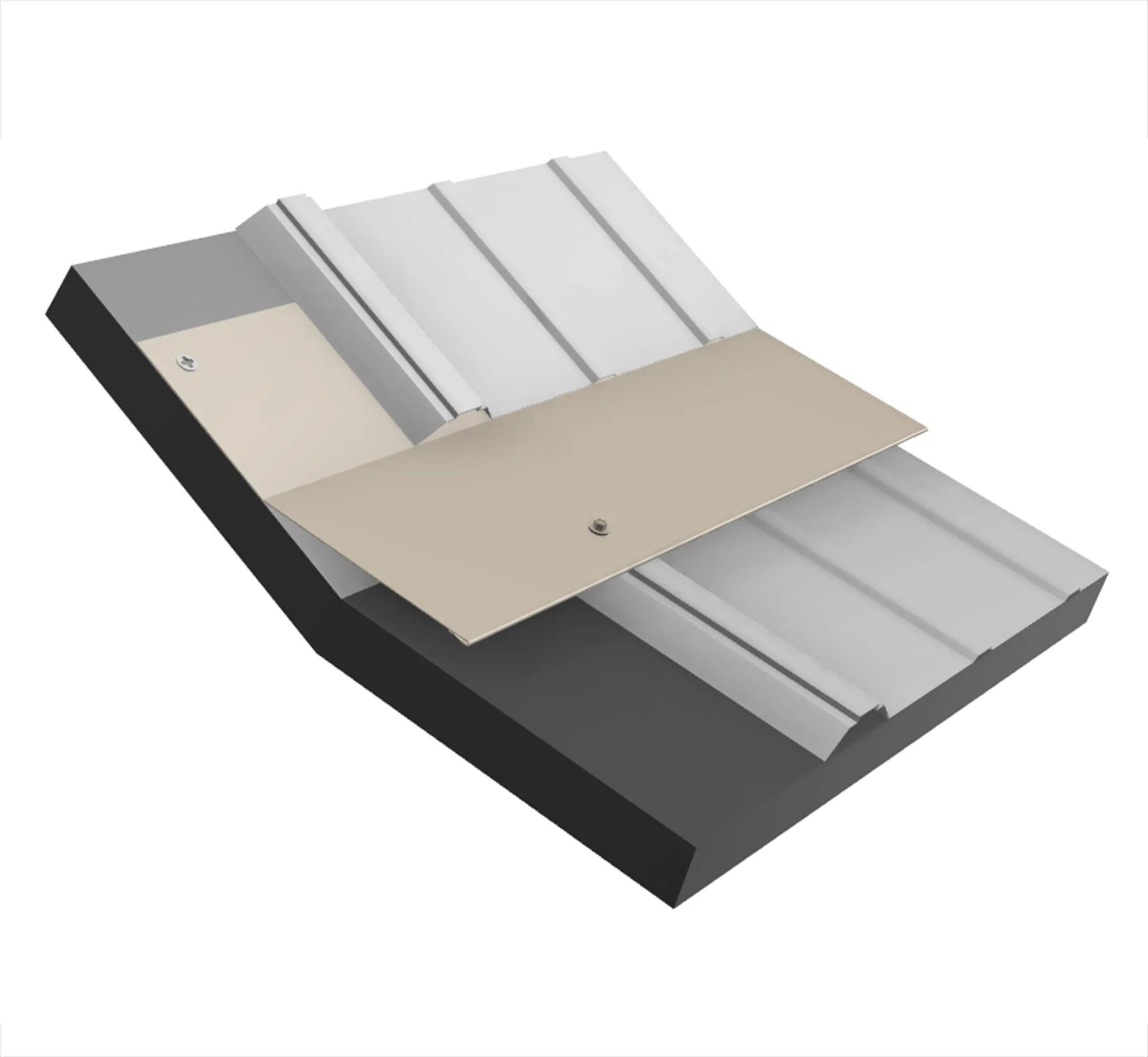

Pitch break/transition flashing prevents leakage at the point where two different roof pitches meet.  It is sealed on the lower side with outside large closures, and can be sealed underneath the upper panels with inside small closures.  The transition flashing provides a continuous drainage where two slopes meet.

Can be bent to match roof pitch, which must be specified at time of ordering

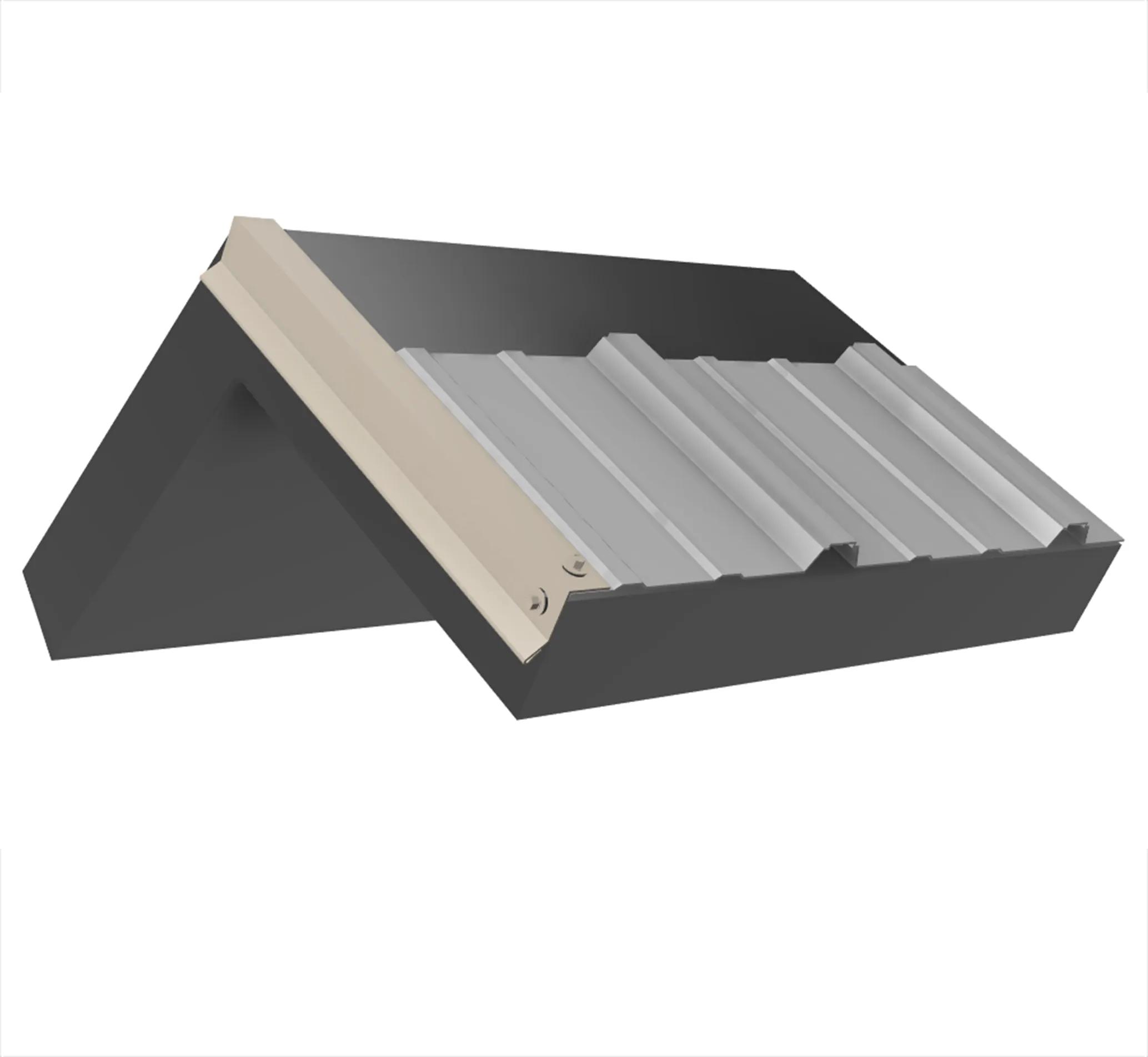

Residential rake cap is designed to be used on gable ends where roof panels extend beyond the gable fascia.

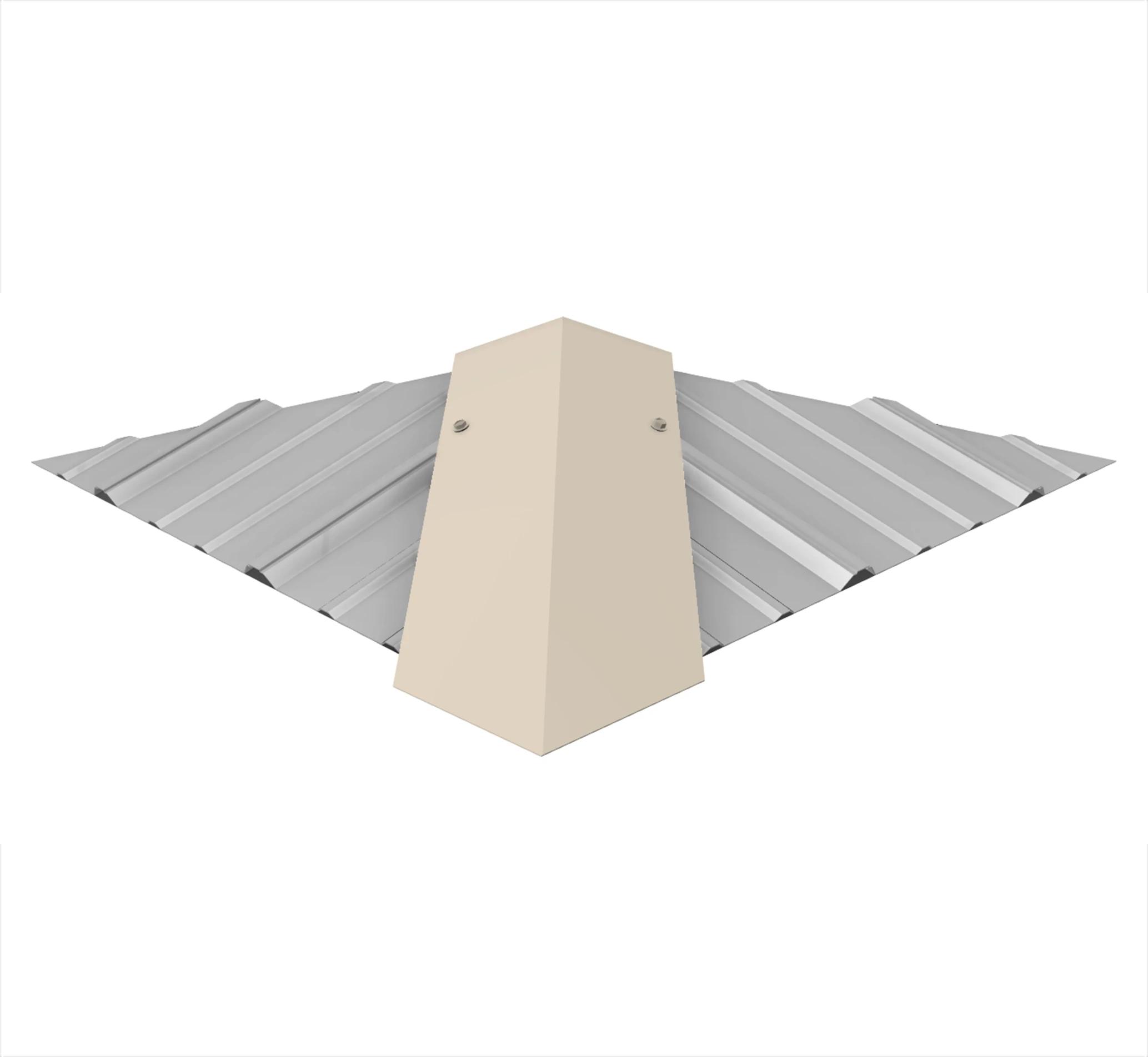

Used to seal the point at which two upward slopes meet, which can be both along the ridge of the roof as well as covering for the hip.  Either woodgrip or self-drill lap TEK screws are applied through the ribs of the metal.  Since debris, insects, and blowing rain can find easy access under the ridge cap, closures are required to either completely or partially seal the opening.  Closures under ridge caps come in two types: solid and vented.

Allows for approximately 4.5″ of coverage and recommended for solid closures.

Allows for approximately 6.5″ of coverage and recommended for vented closures.

Allows for approximately 4.375″ of roof coverage and 3.25″ of wall coverage.

Sidewall flashing is applied when the side of the roof butts up against an adjacent wall.  The wall side of the flashing can either be covered over with siding or sealed with caulk.  Butyl tape should be applied where the “foot” of the flashing attaches to the roof.

This Sidewall flashing allows for approximately 6.375″ of coverage.

This Sidewall flashing allows for approximately 4″ of coverage

This Sidewall flashing allows for approximately 4″ of coverage.

This Sidewall flashing allows for approximately 7″ of coverage.

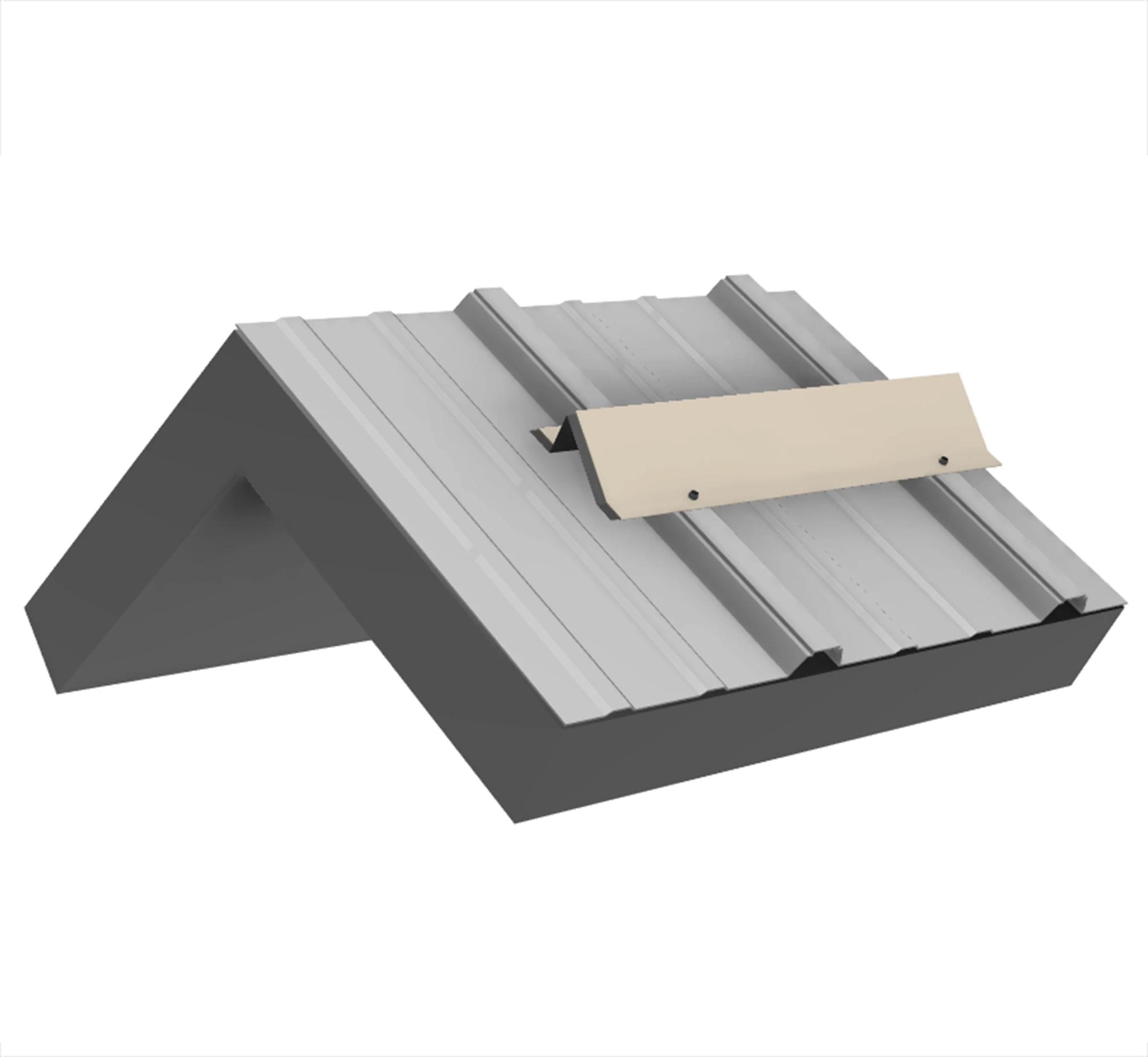

Snow break flashing are placed horizontally across the ribs of the roof panels to impede or break up the flow of snow off the metal roof.  It is generally placed above entry ways or traffic areas.

Step flashing is used where a vertical surface meets a sloping roof plane.

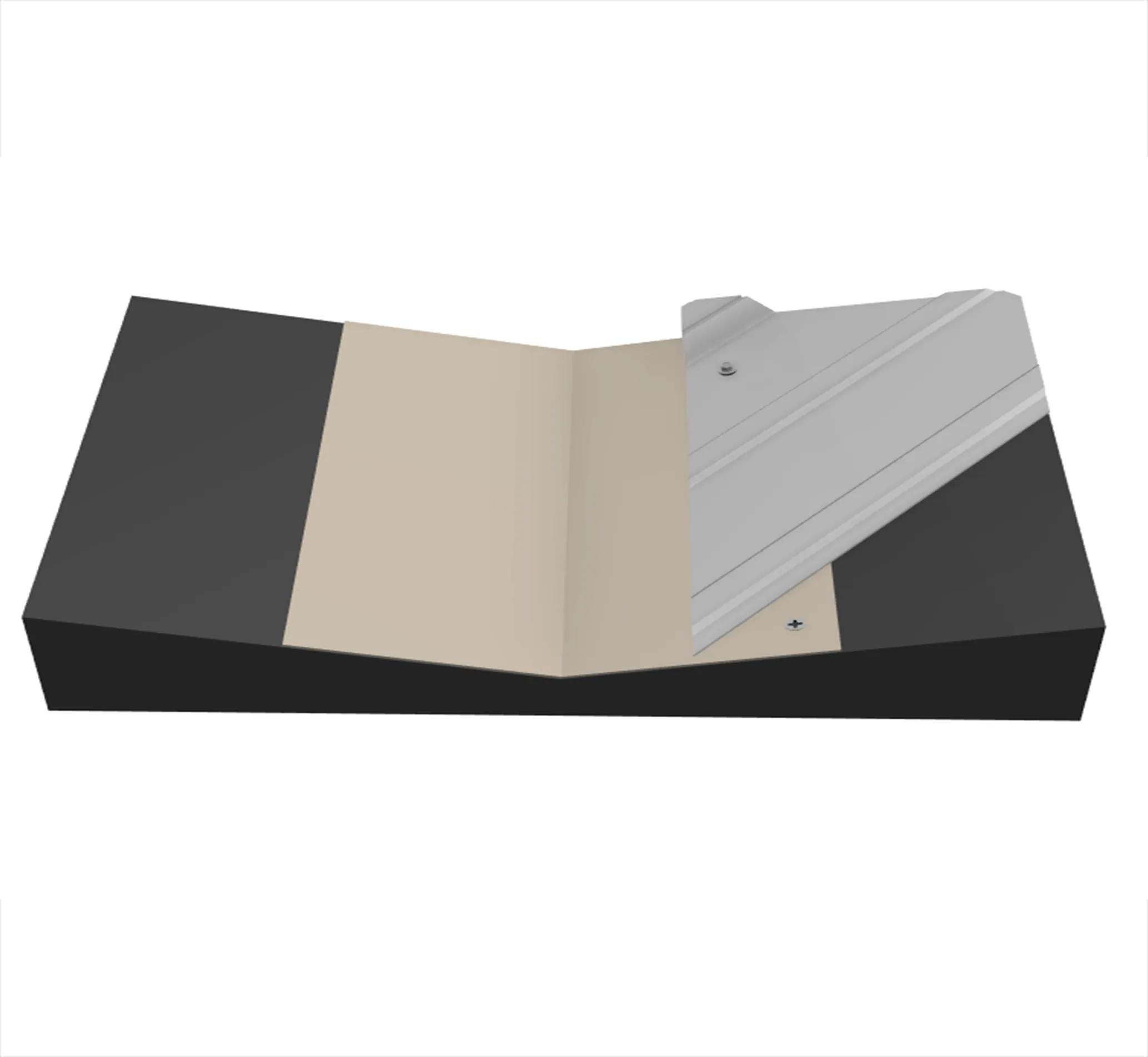

Valley Flashing is the standard flashing used in valleys to protect against any moisture penetration.  Expanding closures are used to provide a good seal.

Allows for approximately 11″ of coverage.

Allows for approximately 4.375″ of roof coverage and 3.625″ of wall coverage.

Allows for approximately 17″ of coverage.

Allows for approximately 16.75″ of coverage.

Allows for approximately 12″ of coverage.

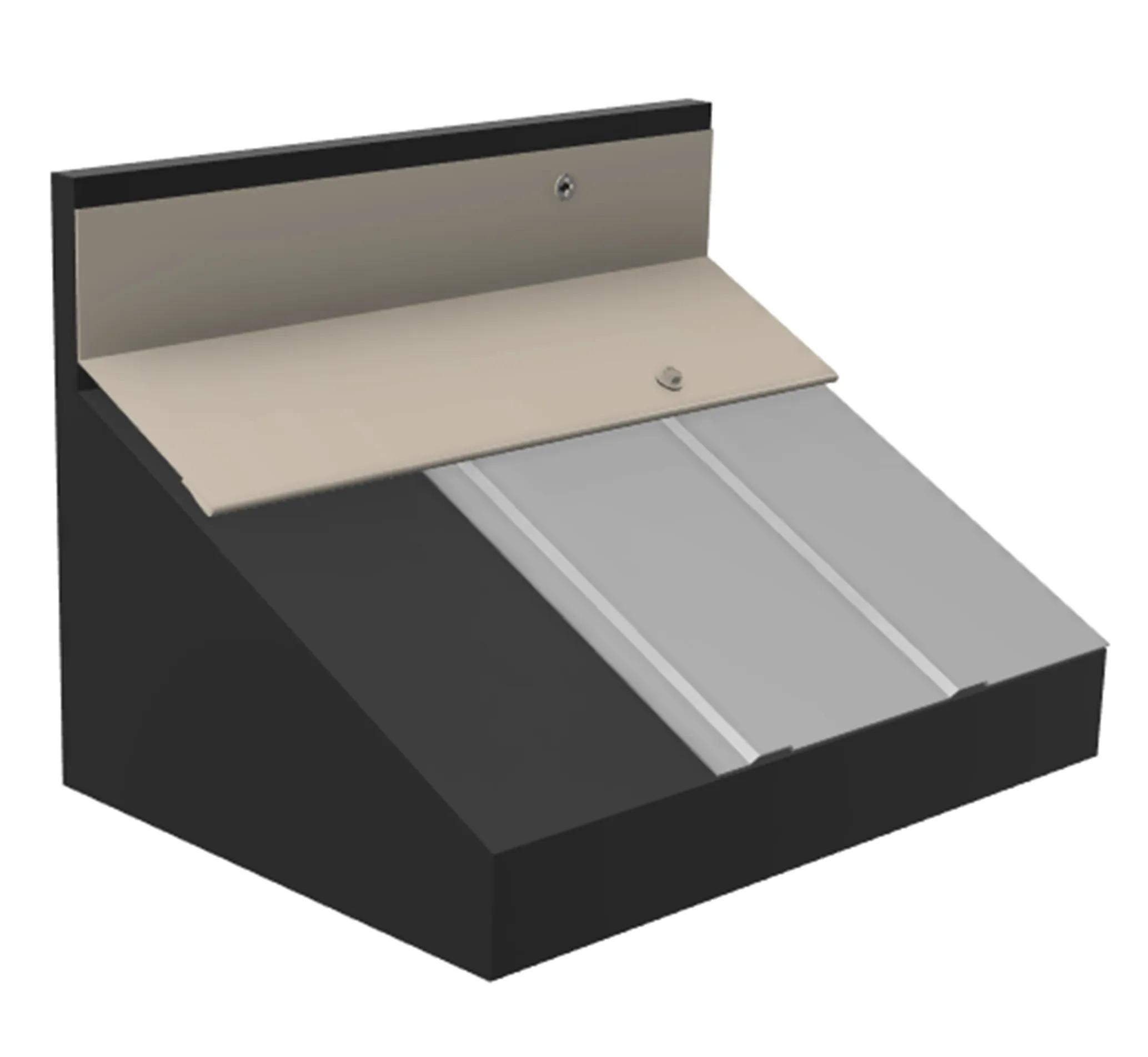

Endwall flashing is applied where the upward slope of a roof meets the wall.  The wall side of the endwall flashing can be covered with siding or counter-flashing, and outside closures are necessary to seal between the flashing and the panel.

Endwall flashing can be bent to match roof pitch, which must be specified at time of ordering.

This Gable flashing allows for approximately 4″ of coverage.

Snap-Tite 1.5 Trims

Trims that compliment the Snap-Tite 1.5 metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

Snap-Tite 1.5 Trims | Metal Roofing & Siding Experts

Snap-Tite Trims

Trims that compliment the Snap-Tite metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

Snap-Tite Trims | Metal Roofing & Siding Experts

Standing Seam Trims

Trims that compliment the Standing Seam metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

Standing Seam Trims | Metal Roofing & Siding Experts

TR-936 Trims

Trims that compliment the TR-936 metal panel. Comes in 29ga, 26ga & 24ga and all provided colour options.

TR-936 Trims | Metal Roofing & Siding Experts

Universal Trims

A series of universal trims that work for all metal panels provided by Metal Roofing & Siding Experts.

Universal Trims | Metal Roofing & Siding Experts

Drip cap is a flashing used along the eaves and rakes to allow water run-off to drip clear of underlying construction. Commonly, it is used to trim out the bottom of panels over doorways and windows, and occasionally takes the place of base flashing at the bottom of a wall.

Base flashing is used as a trim on the bottom of wall panels to prevent any rodent access.  Also used as a gable end wall divide.

Inside corner is used on inside corners where two walls using metal panels intersect or where wall and ceiling meet.

J-Trim is used to cap raw panel edges where run-off is not a problem. Most commonly, j trim metal is used to cap the top edges of skirting, the top and sides of doors, the bottom and sides of windows, and in many cases the top of windows for aesthetics and continuity.

Allows for approximately 2″ of coverage.

Allows for approximately 4″ of coverage.

Used to finish an outside corner when minimum coverage is required. Straddles the ribs of the panels where they meet at the corner of the building.

Allows for approximately 1.875″ of coverage.

Allows for approximately 5.125″ of coverage.

Allows for approximately 7.125″ of coverage.

Allows for approximately 6.25″ of coverage.

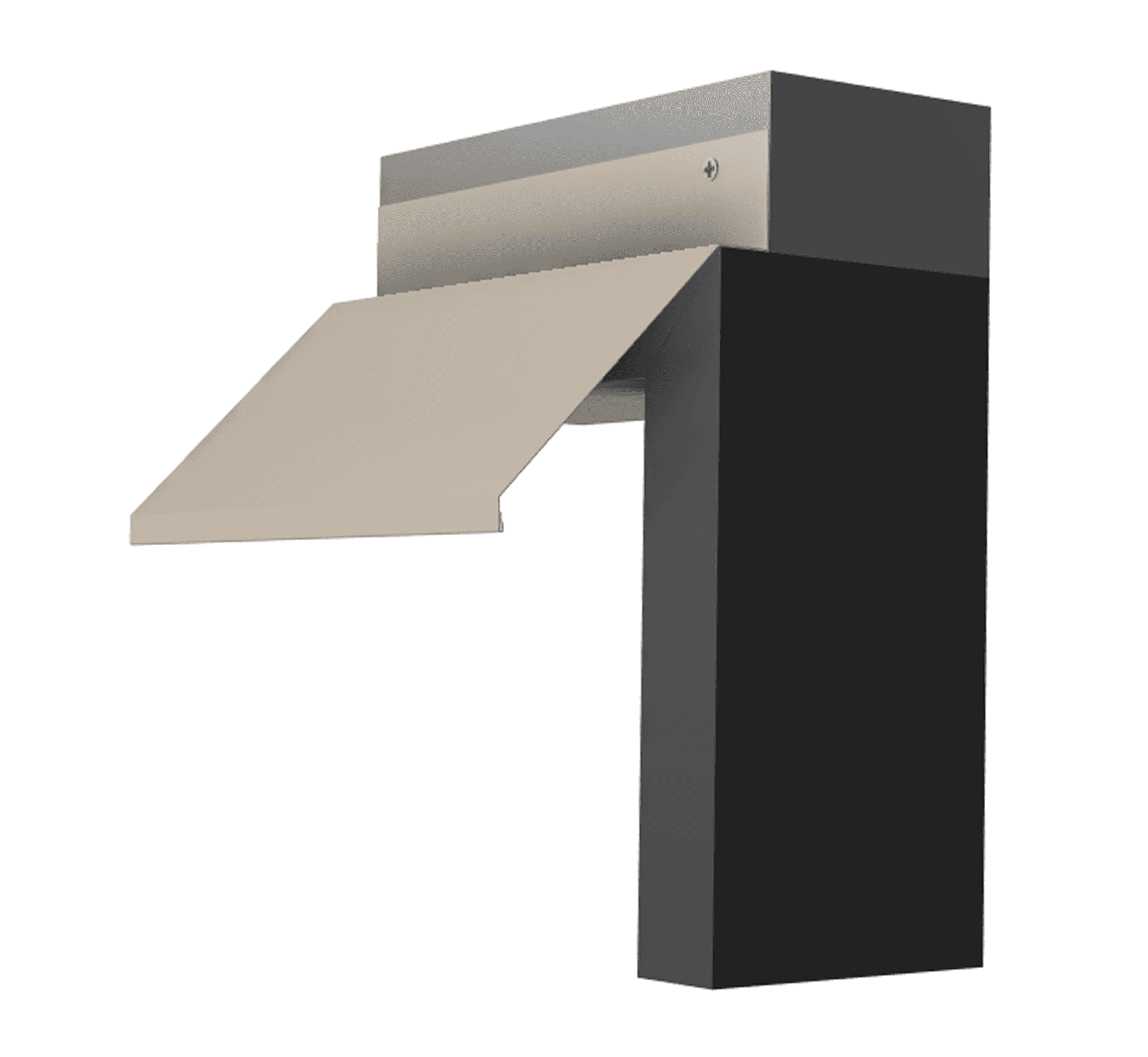

Top mount track cover is used for Cannonball Door Systems, as a coloured option for Key-Hole Track cover.

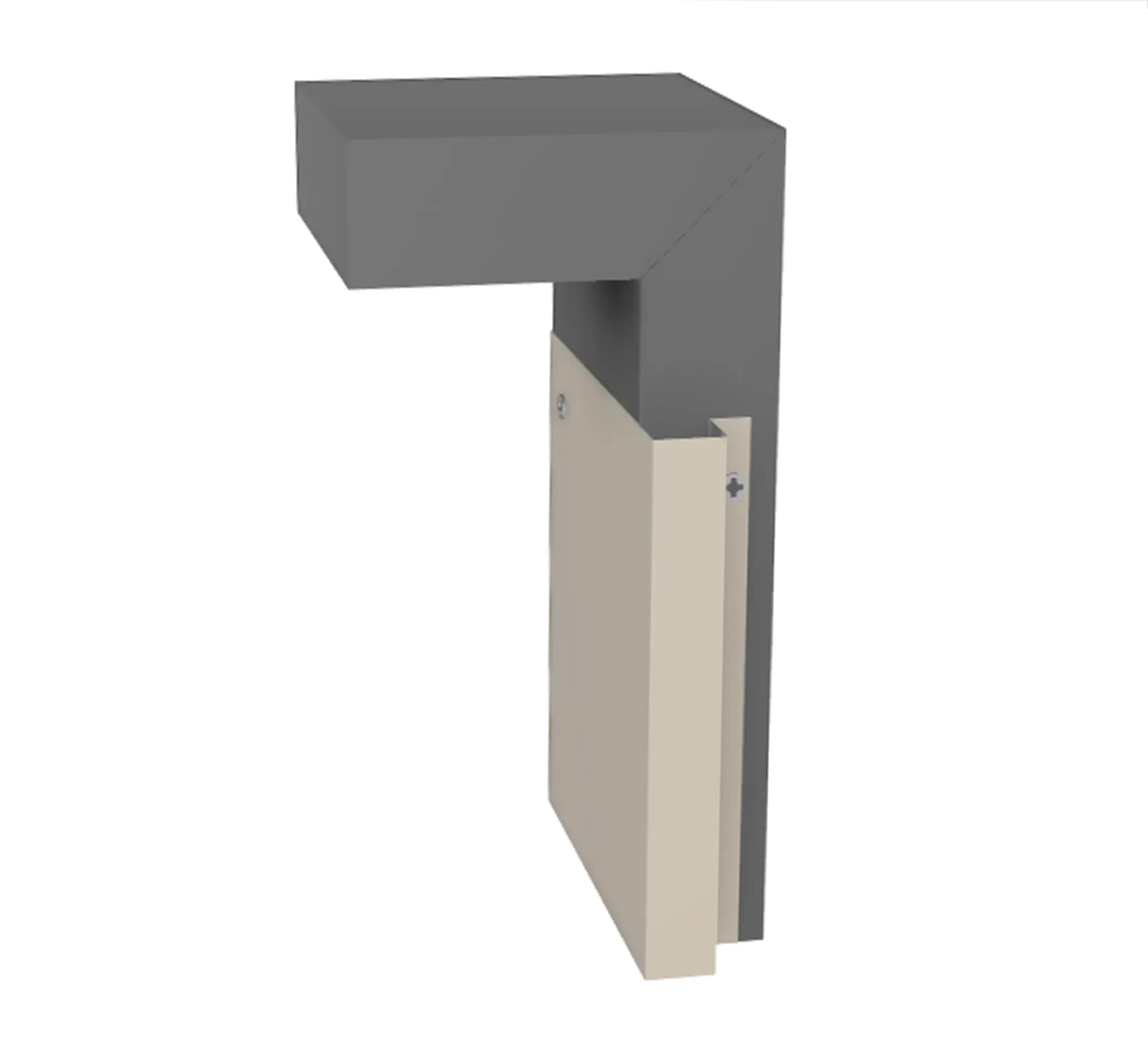

Door jamb flashing is used to provide a maintenance free trim on all overhead and sliding door openings.

Allows for approximately 7″ of coverage.

Allows for approximately 8″ of coverage

Universal Trims

Categories

Roof Trims

Endwall Flashing

MEEW1

MEEW1

Fascia

MEFAS6

MEFAS6

Fascia

MEFAS8

/MEFAS10

MEFAS8

MEFAS10

Hip Cap

MEHC1

MEHC1

Pitch Break

METF1

METF1

Prow Gable

MEPG1

MEPG1

Rake Cap

MERR1

MERR1

Snow Break

MESB1

MESB1

Snow Break

MESB2

MESB2

Step Flashing

MESF2

MESF2

Valley Flashing

MEVF3

MEVF3

Wall Trims

Door Jamb

MEDJ1

/MEDJ2

MEDJ1

MEDJ2

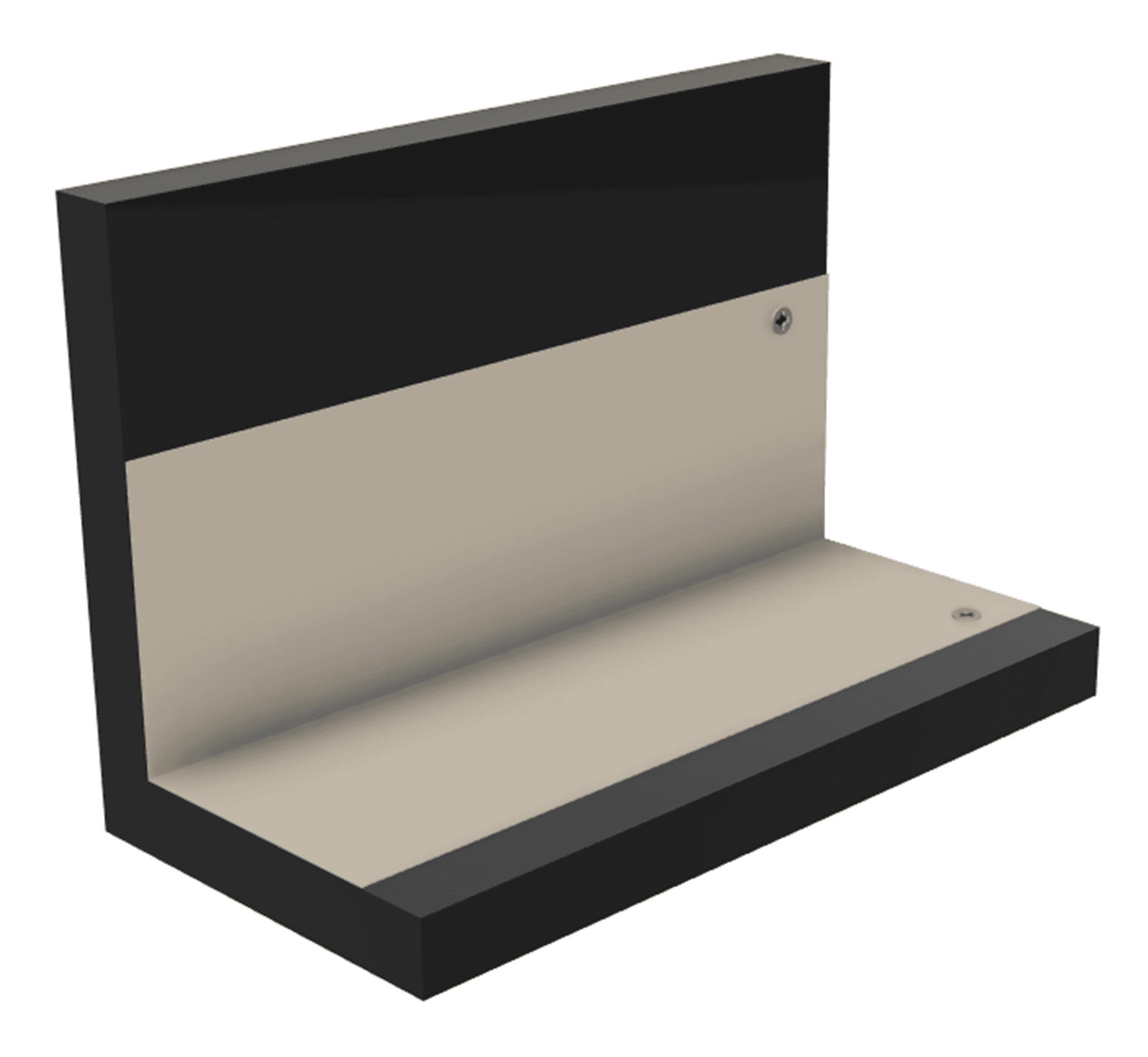

L-Flashing

MELF2

/MELF4

/MELF6

MELF2

MELF4

MELF6

Top Mount Track Cover

METMTC

METMTC
