Board & Batten provides many benefits to any project. A step up from vinyl, and lighter than concrete options available on the market today, here are just some of the advantages that Metex Architectural’s Board & Batten siding panel offers:
• Hidden Fastener System – With a convenient nailing fin, this panel is easily installed with wafer screws, requiring no additional parts. Each panel is fastened to the wall with the next panel clipping into the previous panel, concealing the fasteners and providing a clean and sleek finish.
• Longevity & Durability – Regardless of the gauge selected, steel lasts a lifetime. Resisting damage from the typical weather elements even in the harshest of environments, this panel will outperform any other material on the market.
• Low Maintenance – Unlike other materials that require painting, filling, crack repairs, replacement due to warping, steel only requires simple wash with mild soap and water semi-annually with an annual inspection to keep your building looking brand new!
• Fire Resisting – Steel roofing and siding is one of the most non-combustible materials with the greatest strength to stand up to a fire.

General Info

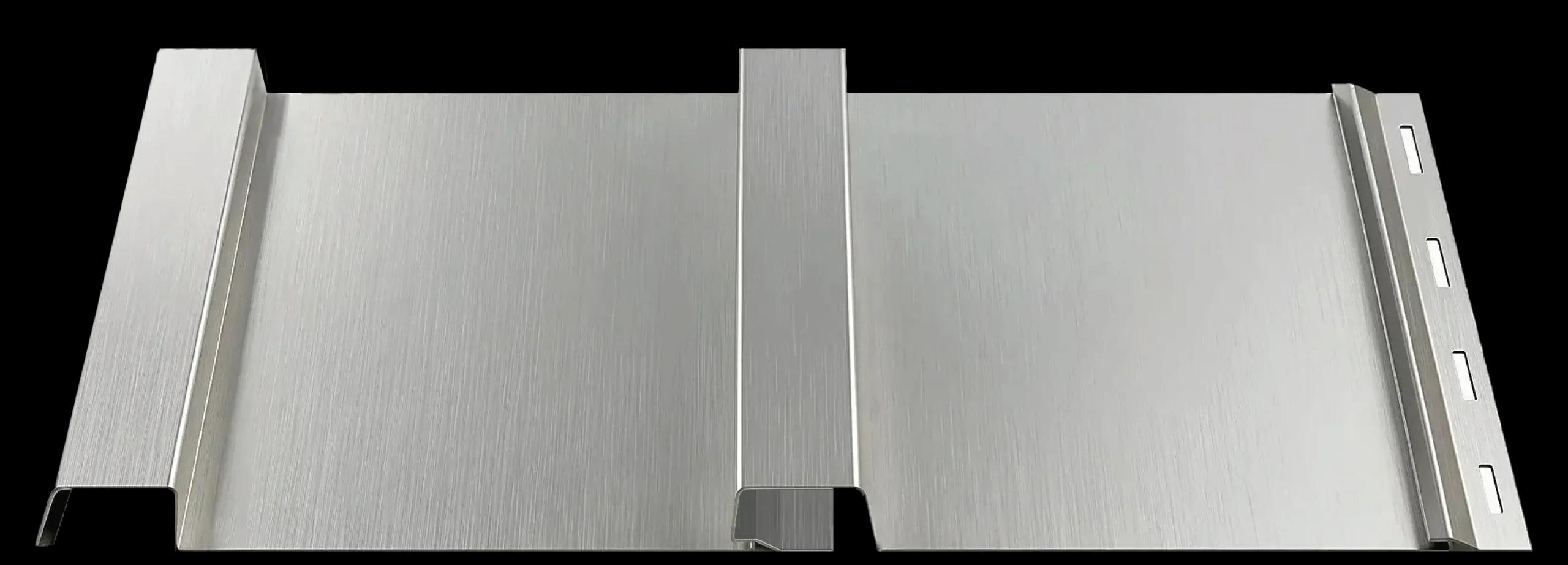

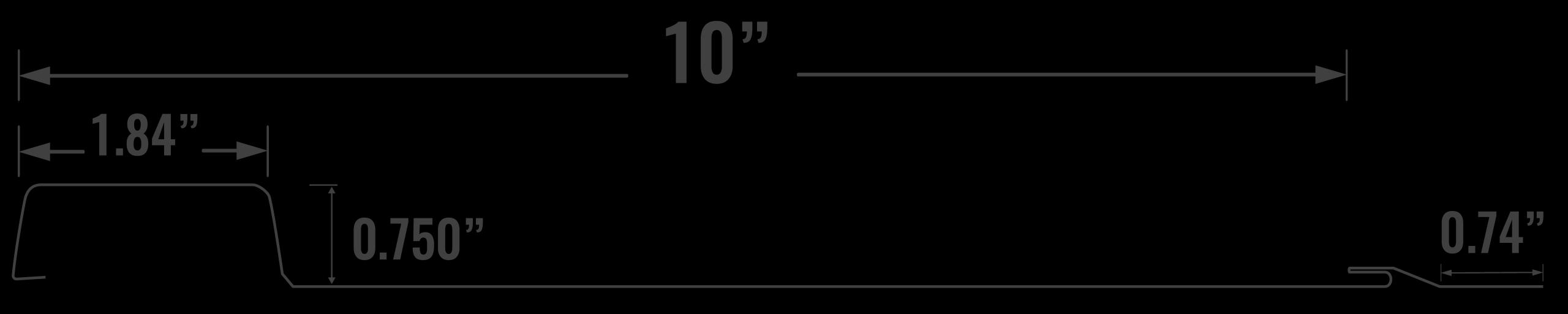

Boasting a 10” wide coverage with each panel, Board & Batten casts a shadow with it’s ¾” high batten and has a convenient nailing fin for a quick and easy installation. You can choose from our 28, 26 and 24 gauge color selections, giving you a multitude of options.

Board & Batten

Send Us a Message

Corporate Office

Benefiting from six manufacturing sites and three Trim Express shops, we are fully prepared to address all of your metal roofing and siding needs.

Contact Us

Phone

If you would like to contact Metal Roofing & Siding Experts, please call or email one of our manufacturing or trim express locations, we will be happy to help.

Contact Us and Request a Quote | Metal Roofing & Siding Experts

The standard fastening and overlap patterns should be used when installing siding to ensure optimum performance. Hemmed corner flashings should be used for strong neat corners. Other flashings you will use when installing side panels are drip cap (over windows), J-Trim (around windows and doors), and door jamb flashing. You should not run siding panels all the way to the ground, and the bottom edge should be terminated on a base flashing. When the wall consists of more than one panel in each vertical row, install panels from the bottom up so water is directed away from, and not into, the lap joints. Siding panels installed horizontally should have Butyl tape or caulking applied at the vertical laps, as this will ensure weather-tite joints.

LR-936® Shadow Wall is the reverse run of our popular LR-936® panel. It is a long lasting, economical, exposed fastener metal siding solution. This profile can be used for residential, agricultural, or light commercial projects. LR-936® Shadow Wall is a versatile product that can be installed over open framing or a solid substrate. To ensure product quality during transport, an additional protective sheet will be added to each lift at the longest length.

LR-936 Shadow Wall

LR-936 Shadow Wall is an economical choice for metal siding. This reverse run panel offers 36" of coverage, is available in 29ga, 26ga or 24ga.

LR-936 Shadow Wall | Metal Roofing & Siding Experts

PBR-1236® Shadow Wall is the reverse run of our PBR-1236® panel. It is a long lasting, economical, exposed fastener metal siding solution. This profile can be used for residential, agricultural, or commercial projects. PBR-1236® is a versatile product that can be installed over open framing or a solid substrate. To ensure product quality during transport, an additional protective sheet will be added to each lift at the longest length.

PBR-1236 Shadow Wall

PBR-1236 Shadow Wall is an economical choice for metal siding. This reverse run panel offers 36" of coverage, is available in 29ga, 26ga or 24ga.

PBR-1236 Shadow Wall | Metal Roofing & Siding Experts

PR-936® Shadow Wall is the reverse run of our PR-936® panel. It is a long lasting, economical, exposed fastener metal siding solution. This profile can be used for residential, agricultural, or commercial projects. PR-936® Shadow Wall is a versatile product that can be installed over open framing or a solid substrate. To ensure product quality during transport, an additional protective sheet will be added to each lift at the longest length.

PR-936 Shadow Wall

PR-936 Shadow Wall is an economical choice for metal siding. This reverse run panel offers 36" of coverage, is available in 29ga, 26ga or 24ga.

PR-936 Shadow Wall | Metal Roofing & Siding Experts

TR-936® Shadow Wall is the reverse run of our popular TR-936® panel. It is a long lasting, economical, exposed fastener metal siding solution. This profile can be used for residential, agricultural, or light commercial projects. TR-936® Shadow Wall is a versatile product that can be installed over open framing or a solid substrate. To ensure product quality during transport, an additional protective sheet will be added to each lift at the longest length.

TR-936 Shadow Wall

TR-936 Shadow Wall is an economical choice for metal siding. This reverse run panel offers 36" of coverage, is available in 29ga, 26ga or 24ga.

TR-936 Shadow Wall | Metal Roofing & siding Experts

X-Panel brings the beauty of a wood finish with the durability and longevity of steel to your building effortlessly. Unlike other materials on the market today, X-Panel requires little to no maintenance and will last a lifetime!
• Hidden Fastener System – This panel is easily installed with its built in nailing fin. The panels nest into one another for a seamless look or can be installed with our reveal option that provides a shadow effect with its ½” spacing providing a completely different aesthetic.
• Sustainable – Did you know that Steel is the world’s most recycled material and that in North America more than 70 million tonnes of it are recycled or exported for recycling every year? In addition, when steel is no longer required it can be recycled rather than end up in the local landfill.
• Low Maintenance – Unlike other materials that require painting, filling, crack repairs, replacement due to warping, steel only requires simple wash with mild soap and water semi-annually with an annual inspection to keep your building looking brand new!
• Durability & Longevity – X-Panel is not only durable but offers a strength second to none, with a pre-painted PVDF 24 gauge steel using the highest quality pigmentation and one of the strongest bonds available. Steel is also more resistant to harsh weather and denting compared to other exterior finishes.
• Cost Effective – Metal siding has a higher up-front cost when compared to vinyl siding, however because of its longevity, it will outlast vinyl by up to twice the length of time. In addition, it provides a better insulation factor resulting in lower heating and cooling costs over it’s lifetime. Steel is an excellent option long-term!

This panel brings classy to any project. With the flexibility of our 4” or 6” wide panels, they nest together giving you a sleek finish with minimal effort. Available in a myriad of 26 gauge finishes, our panel can be installed horizontally as in a typical siding application, or vertically to give it a completely different appearance.
